SD-101 Strain Transducer


Strain Transducers are used to measure static or dynamic strain forces directly on machine mechanical parts. It is a very reliable alternative to the traditional direct gauge bonding on the measured object. The transducer is fitted on the machine to be monitored in a place where the strain is maximum and proportional to the force to be measured.

Applications

  • Tower cranes
  • Press control systems
  • Indirect force measurement on machine members
  • Tension chain measurement

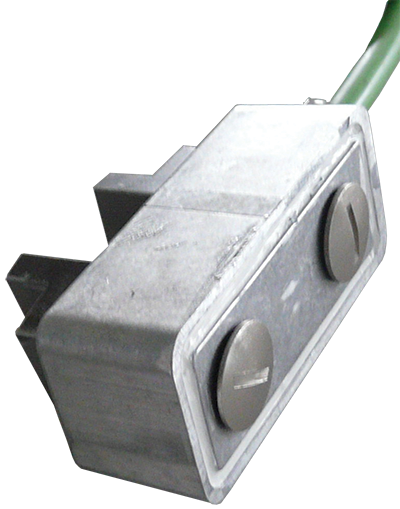

SD 101

Specifications
Mechanical Characteristics
Admissible overload 250% of rated load
Overload at rupture 400% of rated load
Protection class IP 65 according to DIN 40050
Weight 0.5 kg
Electrical Characteristics
Bridge impedance 5000 ohms (single full bridge)
Power supply max. 10 volts DC / AC
Transducer sensitivity 0.7 mV/V when E = 100.106
Accuracy better than 2% of FSD
Operating temperature -10 °C to +40 °C

Dimensions (mm)
SD dimensions

Download detailed dimension drawing (PDF)
